平开合页Plain Bearing Hinges
工业机器设备铰链5050 6060高精密合页工业机器设备铰链5050 6060高精密合页
工业机器设备铰链5050 6060高精密合页工业机器设备铰链5050 6060高精密合页
起批价From
¥5.05
/ 件/ 件
规格价格表SKU Pricing
点击缩略图切换主图；点击规格行查看规格大图；具体价格以最终报价单为准。Click a thumbnail to switch the main photo; click a row to enlarge. Final price per quote.
| # | 规格Spec | 价格Price | 尺寸Size | 厚Thick | 表面Finish | 孔型Holes | 功能Func |
|---|---|---|---|---|---|---|---|

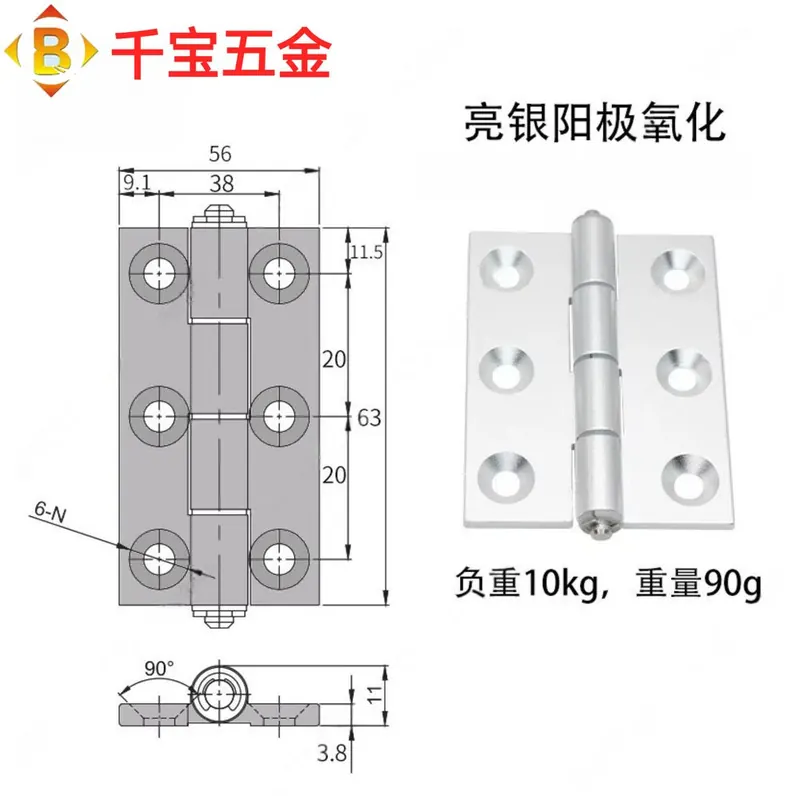

| 1 | 63*56*3.8-3820银色 | ¥8.35 | 63*56 | 3.8 | - | - | - |

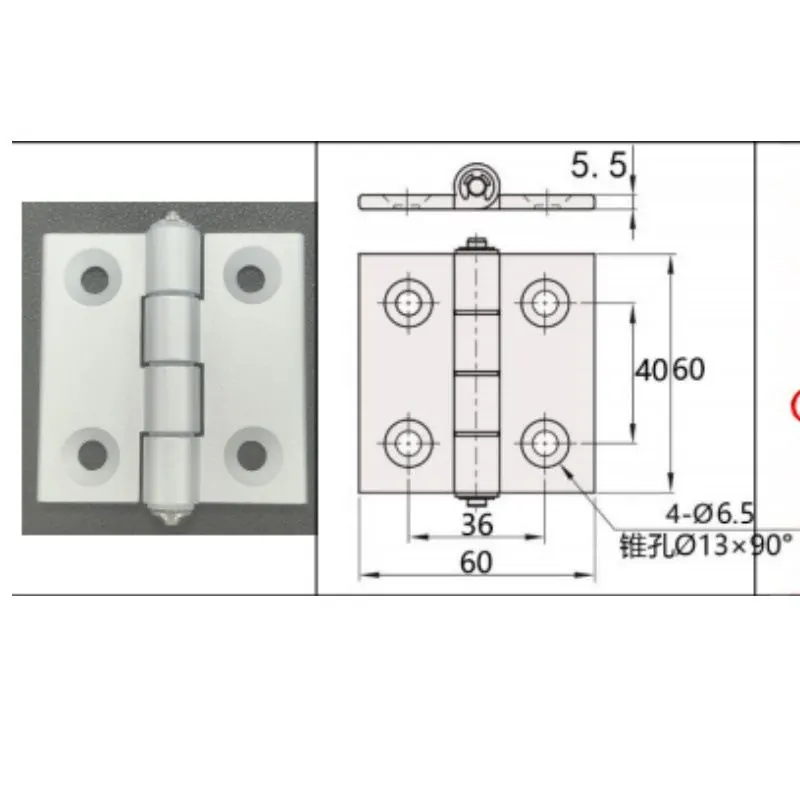

| 2 | 60*60*5.5-40 36 银色 | ¥6.15 | 60*60 | 5.5 | - | - | - |

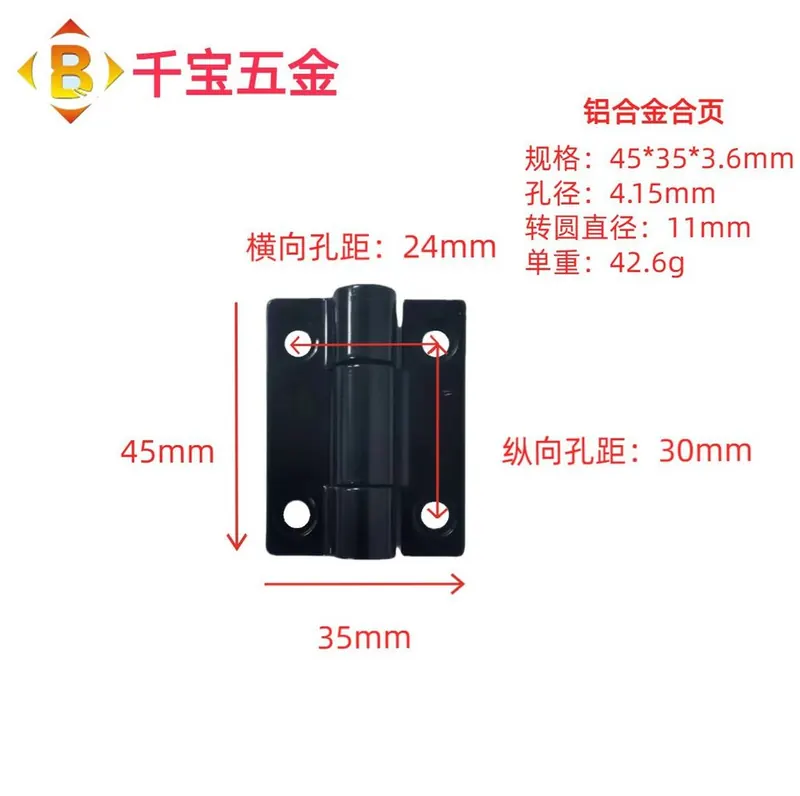

| 3 | 45*35*3.6 | ¥5.05 | 45*35 | 3.6 | - | - | - |

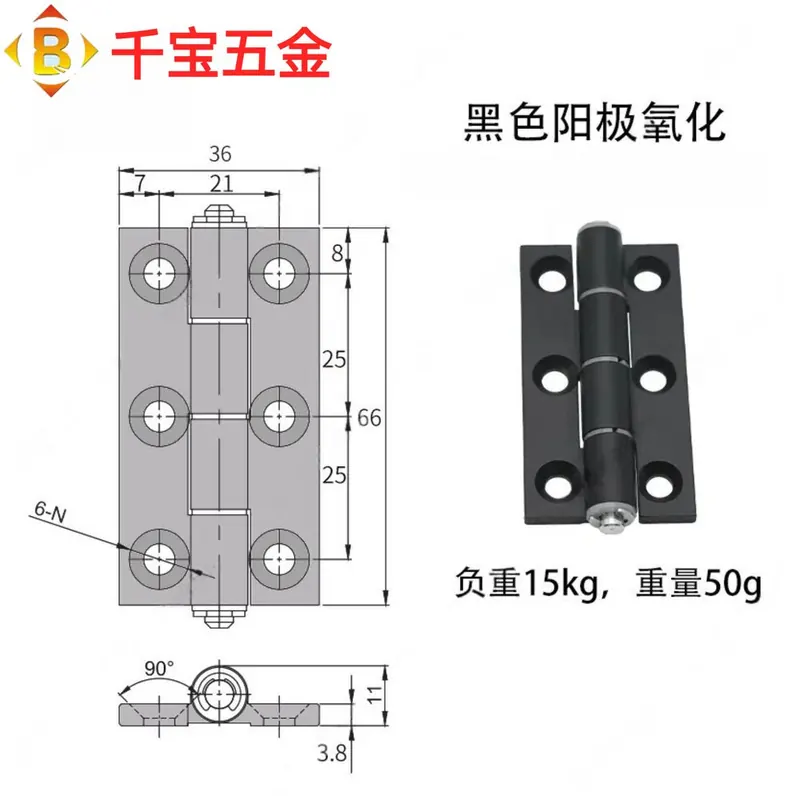

| 4 | 66*36*3.8-2125黑色 | ¥5.58 | 66*36 | 3.8 | - | - | - |

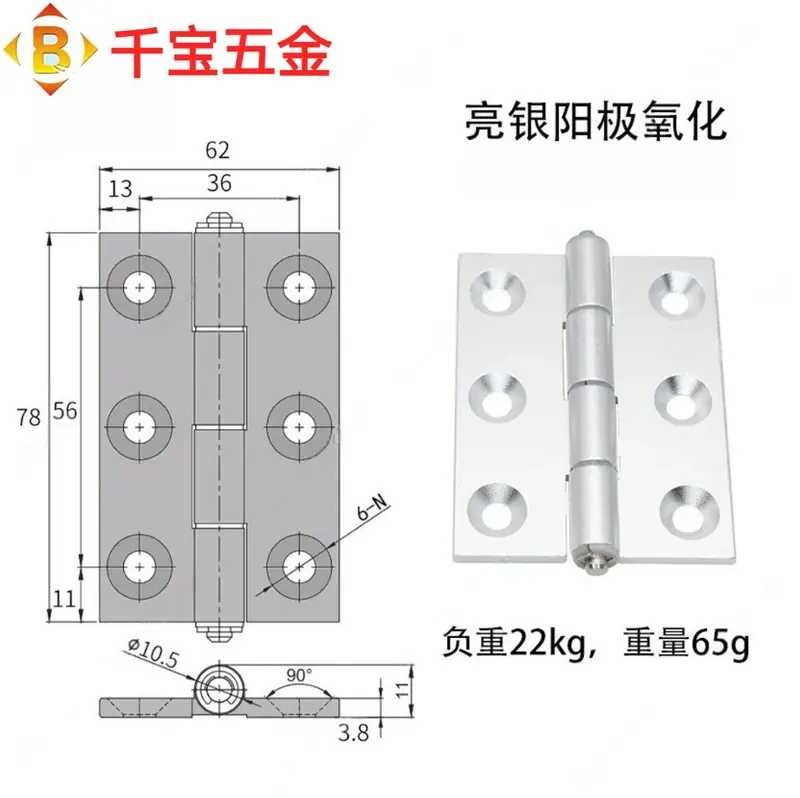

| 5 | 78*62*3.8-3656银色 | ¥8.68 | 78*62 | 3.8 | - | - | - |

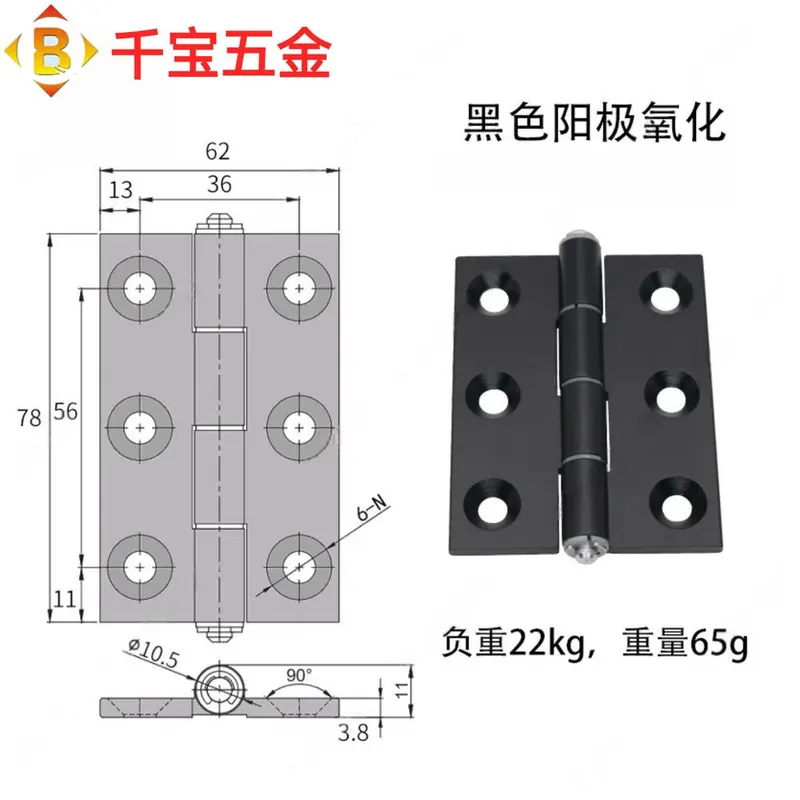

| 6 | 78*62*3.8-3656黑色 | ¥8.68 | 78*62 | 3.8 | - | - | - |

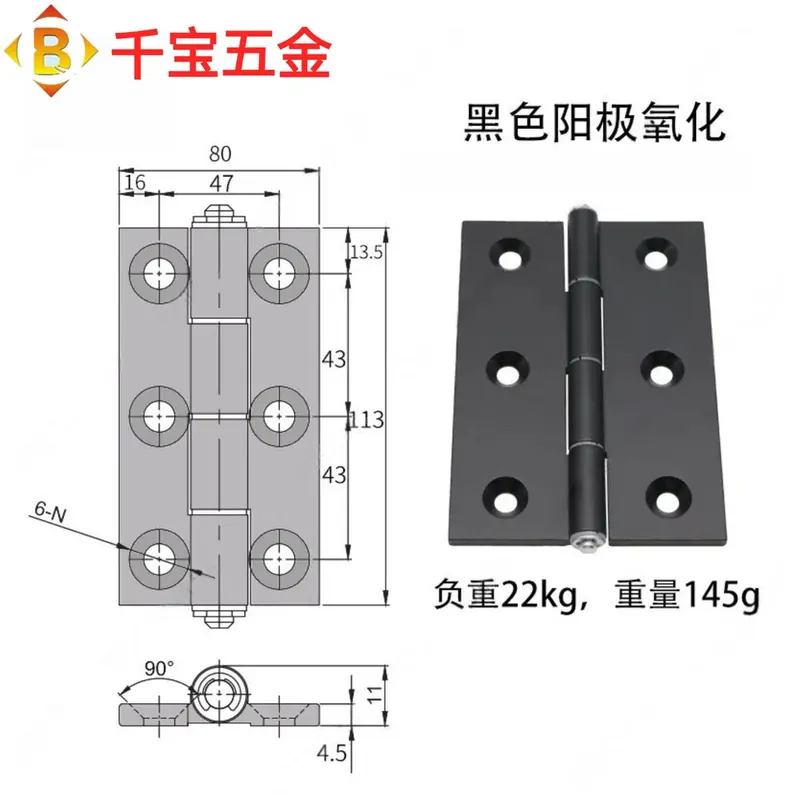

| 7 | 113*80*4.5-4743黑色 | ¥16.5 | 113*80 | 4.5 | - | - | - |

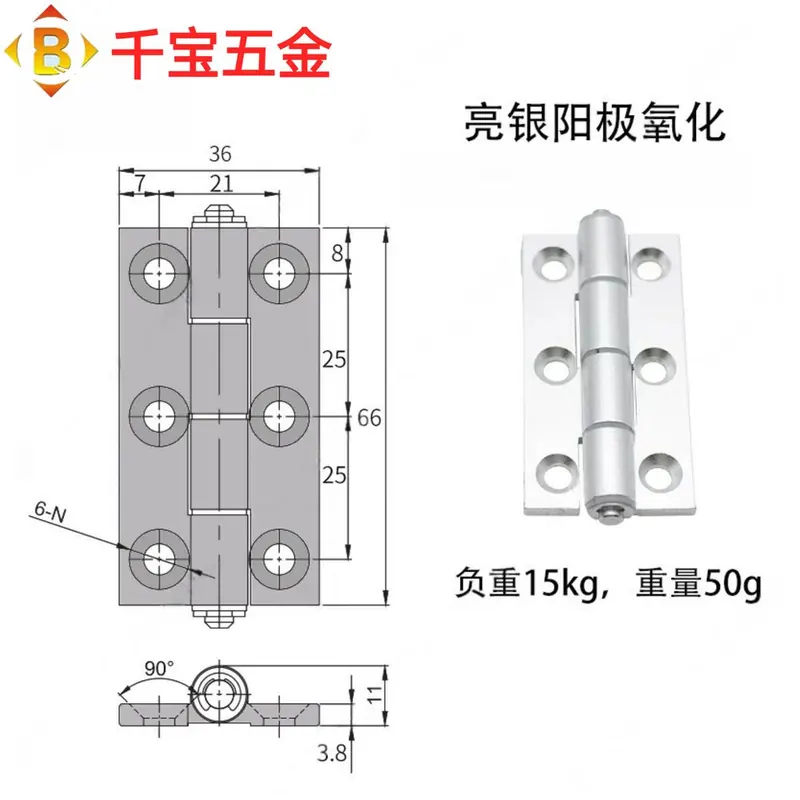

| 8 | 66*36*3.8-2125银色 | ¥5.58 | 66*36 | 3.8 | - | - | - |

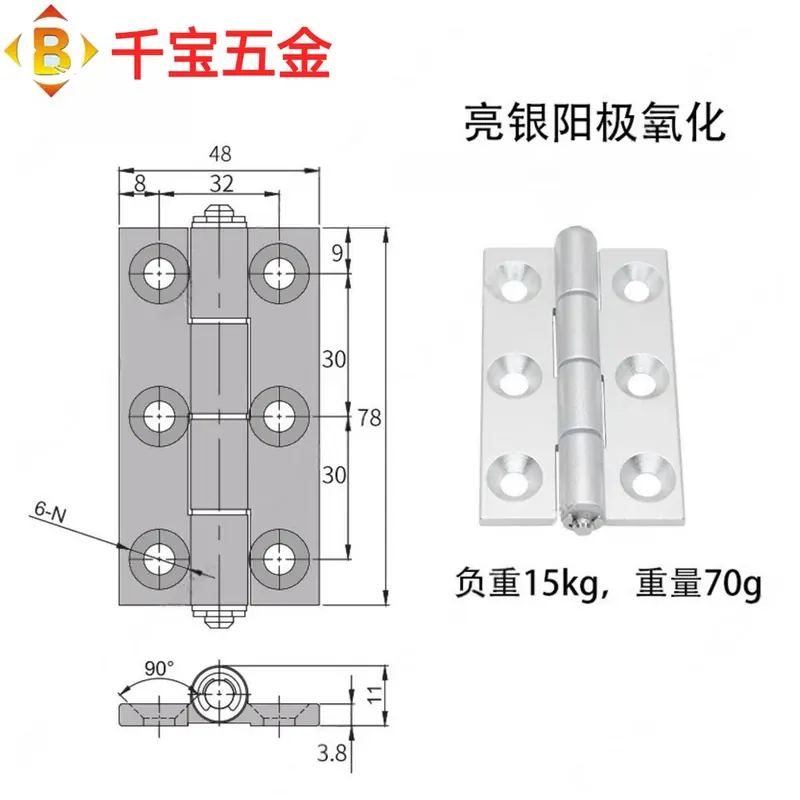

| 9 | 78*48*3.8-3230银色 | ¥6.15 | 78*48 | 3.8 | - | - | - |

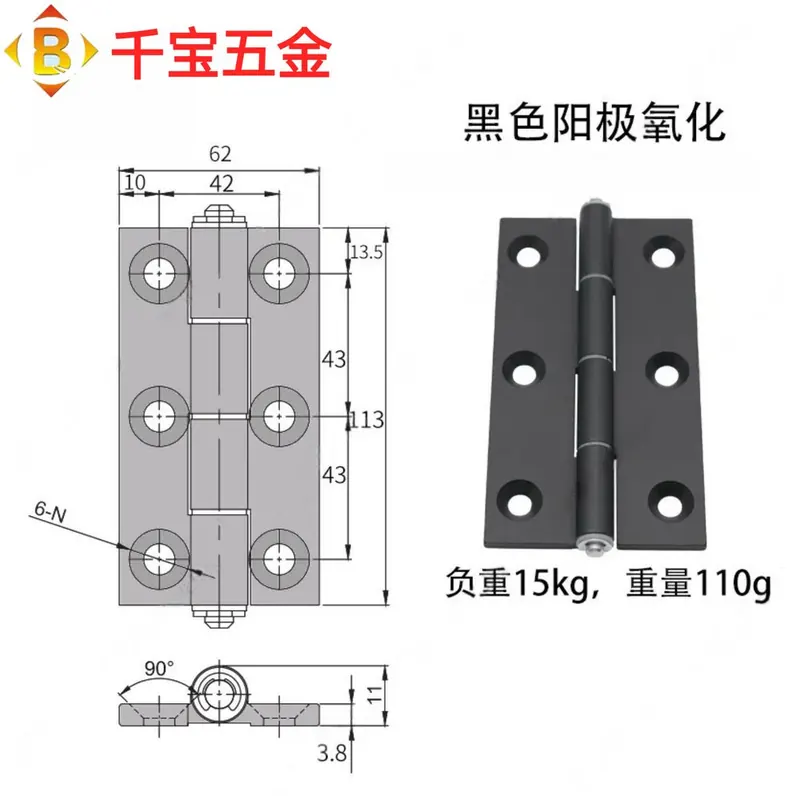

| 10 | 113*62*3.8-4243黑色 | ¥14.5 | 113*62 | 3.8 | - | - | - |
| 11 | 78*48*3.8-32-30黑色 | ¥6.15 | 78*48 | 3.8 | - | - | - |

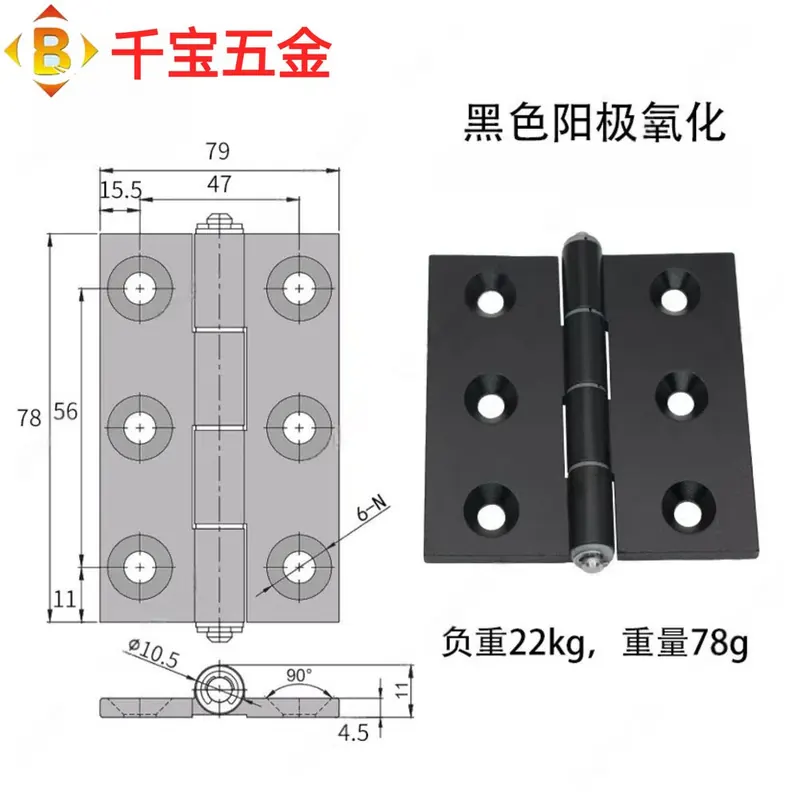

| 12 | 78*79*4.5-4756黑色 | ¥9.45 | 78*79 | 4.5 | - | - | - |

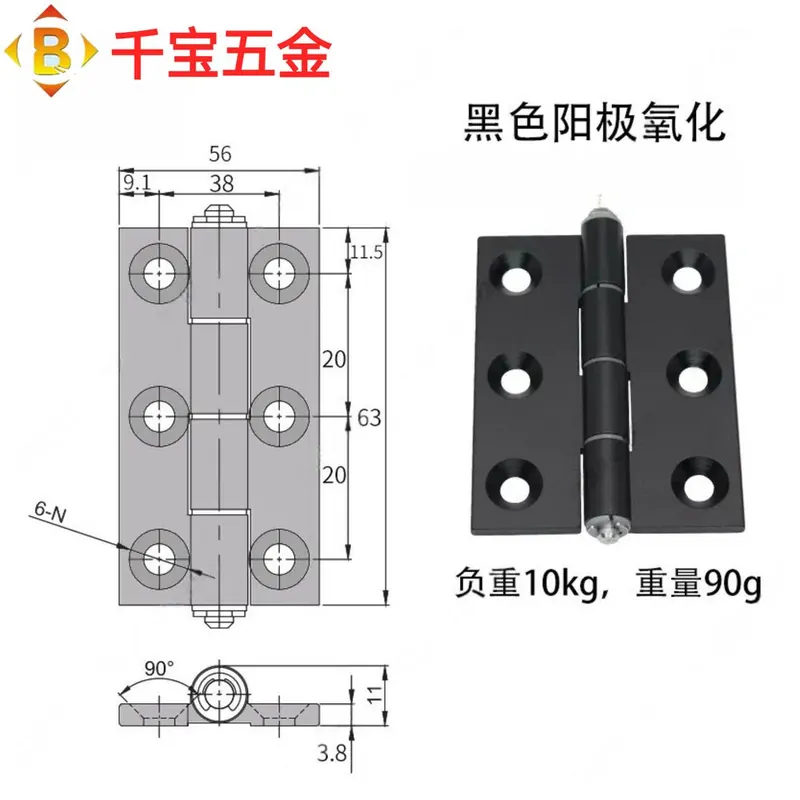

| 13 | 63*56*3.8-3820黑色 | ¥8.35 | 63*56 | 3.8 | - | - | - |
| 14 | 60*60*5.5-40 41银色 | ¥6.15 | 60*60 | 5.5 | - | - | - |

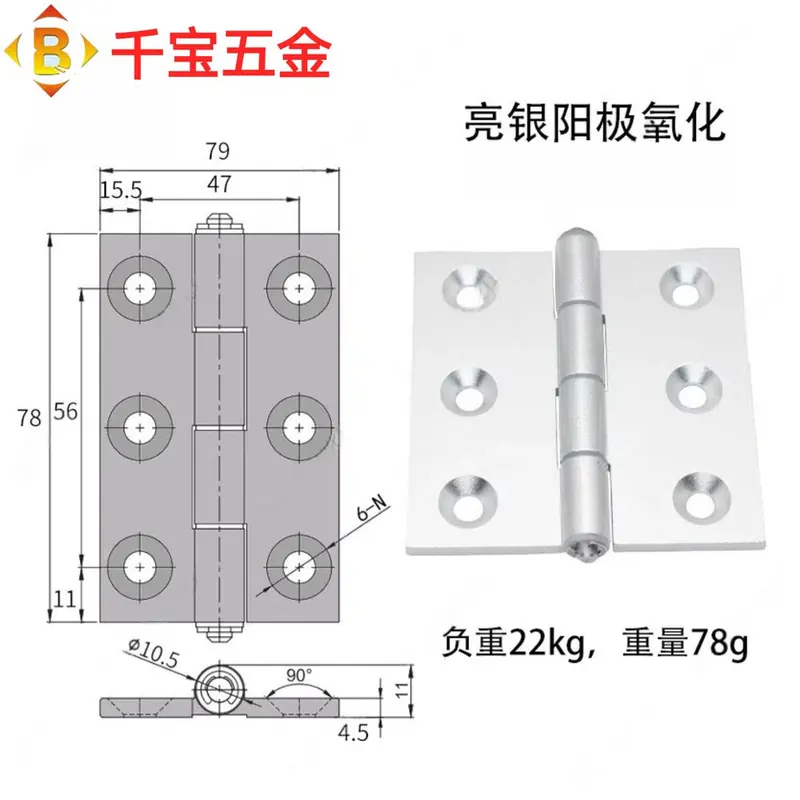

| 15 | 78*79*4.5-4756银色 | ¥9.45 | 78*79 | 4.5 | - | - | - |
适用场景Applications
加微信快速询价 · 获取报价与目录Add WeChat for a Quick Quote & Catalog
规格为典型示例，最终以确认图纸 / 报价单为准。Specs shown are typical examples; final per confirmed drawing/quote.
